S30 Cable granulator machine adopts Italian advanced design concept, executes strict production process and has been tested repeatedly. The Cable granulator machine is suitable for the recycling of raw materials in any country in the world, and can meet the requirements of different power load specifications. The development of the Cable granulator machine not only solved the pollution problem of burning copper, but also improved the quality of copper recovery. Cable granulator machine are used to disconnect and sort various waste electrical wires, such as used telecommunication wires, automobile wires, computer wires, telephone wires and household wires.

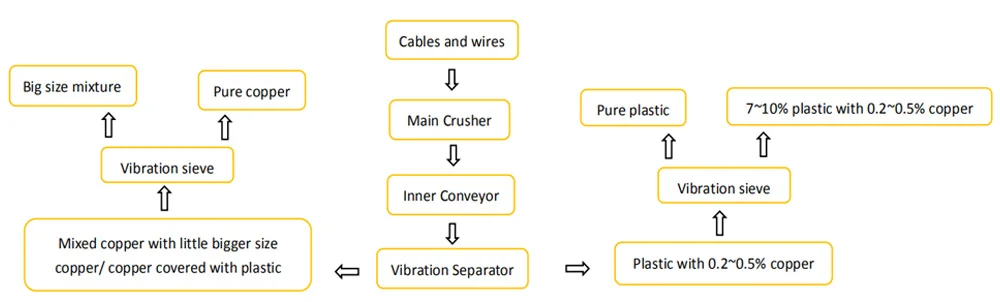

The S30 Cable granulator machine uses a shredder to crush the material into fine particles, and then separates them with high-precision airflow to finally obtain plastic and copper particles. Copper particles and plastic particles that are not completely separated will be separated by a vibrating screen. The Cable granulator machine uses the negative pressure feeder for material transportation, and the pulse dust collector will perform dust removal to reduce the diffusion of dust and the decibel of noise. Cable granulator machine has special features, novel structure, large output and low energy consumption. The separation rate is as high as 99.5%, one feeding, multi-machine cooperation, and an hourly production capacity of 400-500KG. The entire working process of the copper wire separator is controlled by PLC, which is at the leading level in the world.
● Machine all mostly parts are connected with the control panel which has matched number in every parts.
● Machine heavy but needn't occupy too much space and installation convenience.
● Operation reliable and easier performance.
● Copper separation rate is 99.99%
Crusher (crushing scrap cables to small pieces 3mm/4mm/5mm)
Conveyor (transmit cut cable to vibration separator)
Vibration separator (divided mixed cable into copper granules and plastic granules)
Dusty fan (blowing away duty of cables in processing)
Dust collect box (coollect of dusty happened in processing)
Vibration sieve on side pure copper output (separate 100% pure copper and mix )
Vibration sieve on side pure plastic output (separate 100% pure plastic and mix )
PLC control panel (control whole machine working normal)
